BAT54M3T5G
This Schottky barrier diode is designed for high speed switching applications, circuit protection, and voltage clamping.
Extremely low forward voltage reduces conduction loss.
Miniature surface mount package is excellent for hand held and portable applications where space is limited.

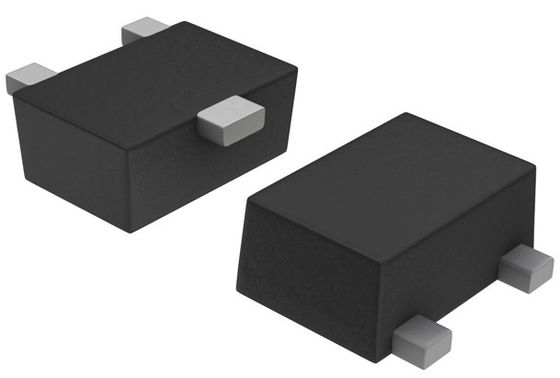

The BAT54M3T5G device is a spin−off of our popular SOT−23 three−leaded device and is housed in the SOT−723 surface mount package.
This device is ideal for low−power surface mount applications where board space is at a premium.
Features
• Extremely Fast Switching Speed
• Low Forward Voltage − 0.35 Volts (Typ) @ IF = 10 mAdc
• Reduces Board Space
• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
|
Packaging
|

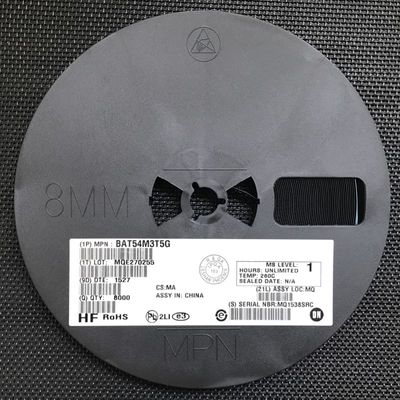

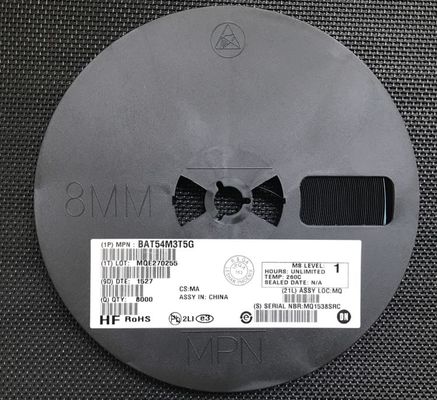

Tape & Reel (TR
Cut Tape (CT
Digi-Reel
|
|
|
Part Status
|
Active
|
|
|
Technology
|
|
|
|
Voltage - DC Reverse (Vr) (Max)
|
30 V
|
|
|
Current - Average Rectified (Io)
|
200mA
|
|
|
Voltage - Forward (Vf) (Max) @ If
|
800 mV @ 100 mA
|
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr)
|
5 ns
|
|
|
Current - Reverse Leakage @ Vr
|
2 µA @ 25 V
|
|
|
Capacitance @ Vr, F
|
10pF @ 1V, 1MHz
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
SOT-723
|
|
|
Operating Temperature - Junction
|
-55°C ~ 125°C
|
