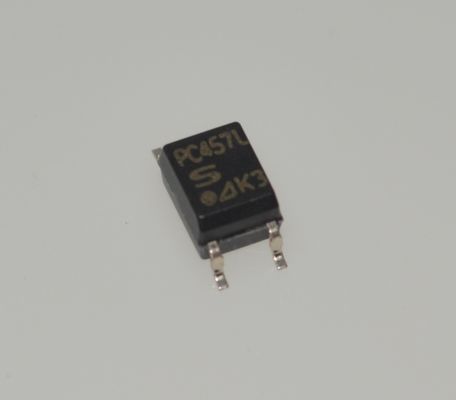

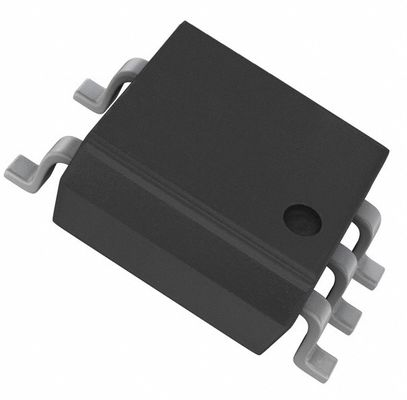

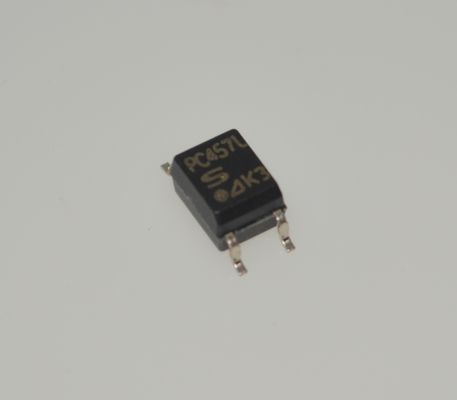

PC457L0NIP0F 4-Channel Isolator with High-Speed Data Rate Wide Temp Range Low Power Consumption High ESD Protection Compact Design and UL Certification for Industrial Automation & Motor Control
Features
1. Mini-flat 5 pin package
2. Double transfer mold package (Ideal for Flow Soldering)
3. High speed response (tPHL : TYP. 0.2 µs, tPLH : TYP. 0.4 µs)
4. High noise immunity due to high instantaneous com mon mode rejection voltage (CMH : MIN. 15kV/µs, CML : MIN. −15kV/µs)
5. High isolation voltage between input and output (Viso(rms) : 3.75 kV)
6. RoHS directive compliant
Applications
1. Programmable controller
2. Inverter
Description
PC457L0NIP0F Series contains a LED optically couIt is packaged in a 5 pin Mini-flat.
pled to an OPIC chip.
Input-output isolation voltage(rms) is 3.75 kV.
High speed response (TYP. 1Mb/s) and CMR is MIN. 15 kV/µs.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
SHARP/Socle Technology
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
19% @ 16mA
|
|
|
Current Transfer Ratio (Max)
|
50% @ 16mA
|
|
|
Turn On / Turn Off Time (Typ)
|
200ns, 400ns
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
20V
|
|
|
Current - Output / Channel
|
8mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.7V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Vce Saturation (Max)
|
-
|
|
|
Operating Temperature
|
-55°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.173", 4.40mm Width), 5 Leads
|
|
|
Supplier Device Package
|
5-MFP
|
|
|
Base Product Number
|
Drawing
