BCX5416TA 60V 1A NPN Transistor with High hFE 100-250 625mW Power Low Noise SOT-89-3 Package Halogen-Free AEC-Q101 Qualified Tape andamp; Reel Packaging
andnbsp;
Features
andbull; BVCEO andgt; 45V, 60V andamp; 80V
andbull; IC = 1A Continuous Collector Current
andbull; ICM = 2A Peak Pulse Current
andbull; Low Saturation Voltage VCE(sat) andlt; 500mV @ 0.5A
andbull; Gain Groups 10 and 16
andbull; Epitaxial Planar Die Construction
andbull; Complementary PNP Types: BCX51, 52, and 53
andbull; Totally Lead-Free andamp; Fully RoHS Compliant
andbull; Halogen and Antimony Free. andldquo;Greenandrdquo; Device
andnbsp;
Applications
andbull; Medium power switching or amplification applications
andbull; AF driver and output stages
andnbsp;
Description
The BCX5416TA is a high-performance NPN bipolar junction transistor designed for general-purpose amplification and switching applications. Housed in a compact SOT-89-3 surface-mount package, it offers an excellent combination of high voltage capability, current gain and power dissipation, making it suitable for various analog and power management circuits.
andnbsp;
INFORMATION
|
Category
|
andnbsp;
|
|
|
Mfr
|
andnbsp;
|
|
|
Series
|
-
|
andnbsp;
|
|
Packaging
|

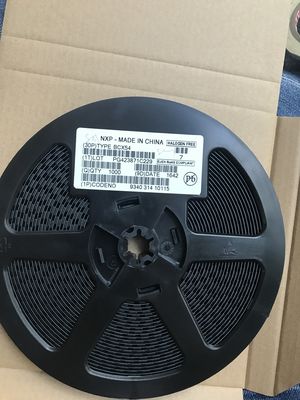

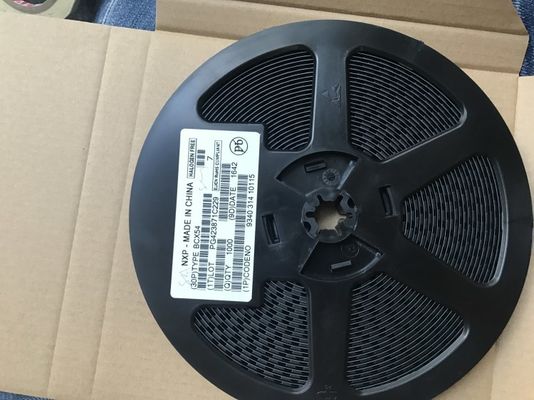

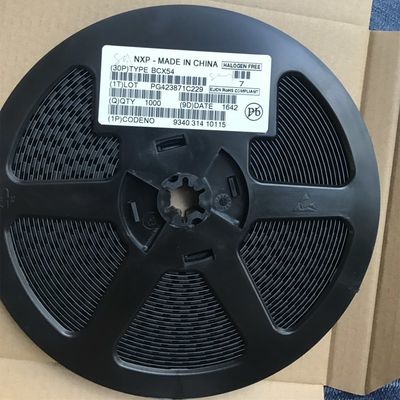

Tape andamp; Reel (TR)
Cut Tape (CT)
Digi-Reelandreg;
|
andnbsp;
andnbsp;
andnbsp;
|
|
Part Status
|
Active
|
andnbsp;
|
|
Transistor Type
|
andnbsp;
|
|
|
Current - Collector (Ic) (Max)
|
1 A
|
andnbsp;
|
|
Voltage - Collector Emitter Breakdown (Max)
|
45 V
|
andnbsp;
|
|
Vce Saturation (Max) @ Ib, Ic
|
500mV @ 50mA, 500mA
|
andnbsp;
|
|
Current - Collector Cutoff (Max)
|
100nA (ICBO)
|
andnbsp;
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 150mA, 2V
|
andnbsp;
|
|
Power - Max
|
1 W
|
andnbsp;
|
|
Frequency - Transition
|
150MHz
|
andnbsp;
|
|
Operating Temperature
|
-65anddeg;C ~ 150anddeg;C (TJ)
|
andnbsp;
|
|
Mounting Type
|
Surface Mount
|
andnbsp;
|
|

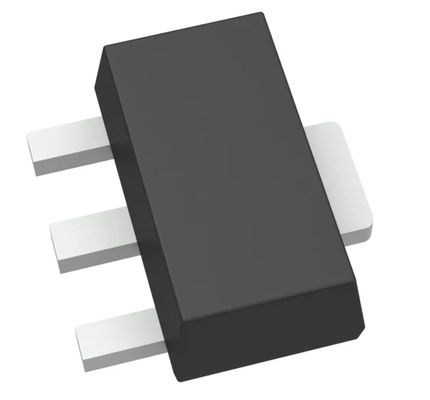

Package / Case
|
TO-243AA
|
andnbsp;
|
|
Supplier Device Package
|
SOT-89-3
|
andnbsp;
|
|
Base Product Number
|
andnbsp;
Drawing
