Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Điện áp định mức ac IEC: | 690 V | Xếp hạng Ampe: | 125 A |
|---|---|---|---|
| Tuân thủ Rohs: | Đúng | Chiều rộng sản phẩm: | 40 mm |
| Chiều dài sản phẩm: | 135 mm | Chiều cao sản phẩm: | 64mm |

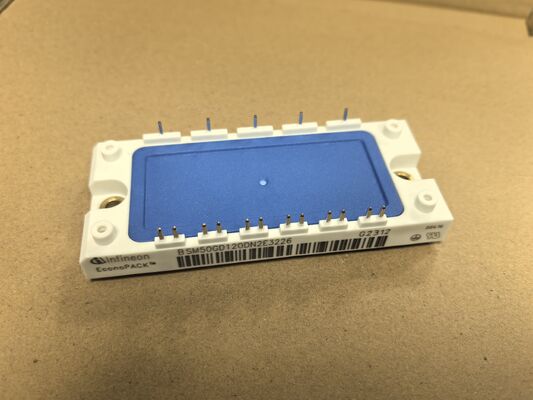

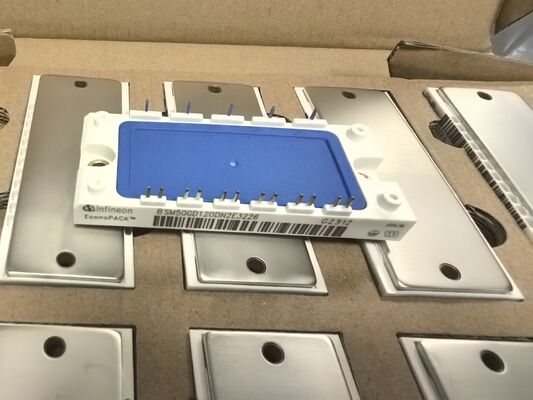

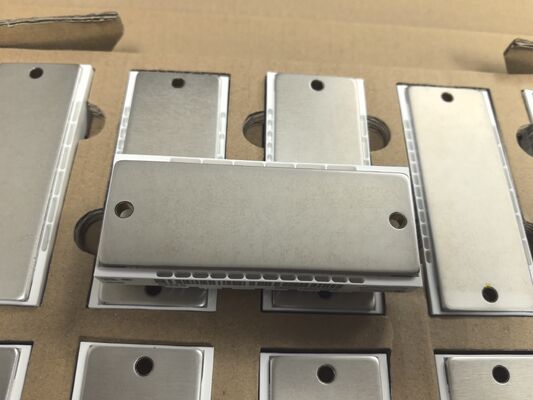

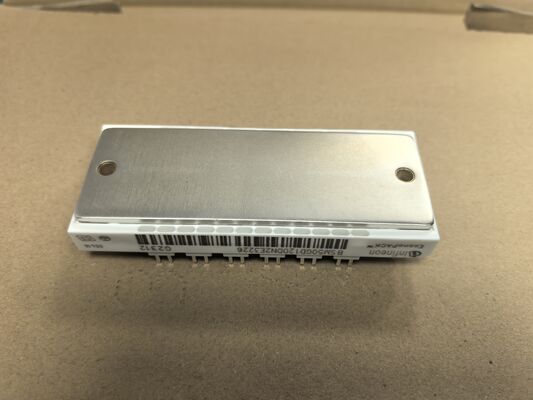

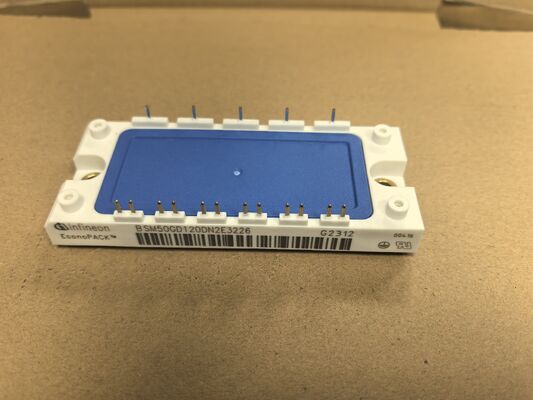

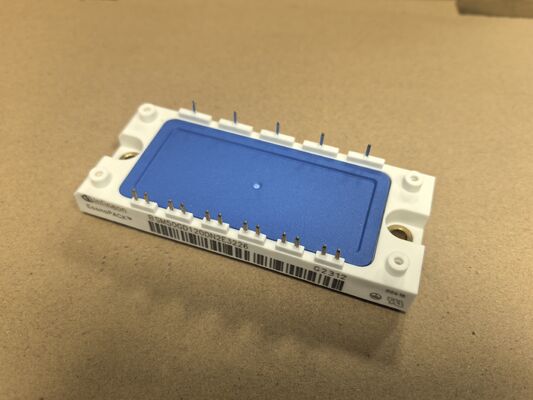

BSM50GD120DN2E3226 1200V/50A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for Motor Drives & Solar Inverters
Features
Voltage/Current Rating: 1200 V / 50 A
Configuration: Dual IGBT
Low Saturation Voltage: VCE(sat) for reduced conduction losses.
Low Switching Losses: Optimized for high-frequency operation.
Built-in NTC Thermistor: Enables thermal protection and monitoring.
Isolated Baseplate: Facilitates easy heatsink mounting and improves safety.
High Reliability: Industrial-grade longevity and robustness.
Low Thermal Impedance: Efficient heat dissipation.
Applications
Solar Inverters: Used in the power conversion stage of residential and commercial photovoltaic systems.
Uninterruptible Power Supplies (UPS): Employed in the inverter section of online and line-interactive UPS systems.
Industrial Motor Drives: For controlling AC motors in pumps, fans, and compressors.
Welding Equipment: Provides the switching core for industrial welding machines.
Induction Heating: Used in the power circuits of induction heating and melting systems.
Description
The BSM50GD120DN2E3226 is a high-power dual IGBT module designed for robust performance in demanding energy conversion applications. It is rated for 1200V and 50A, offering a reliable power stage for medium to high-power systems. The module is engineered for high efficiency, featuring a low collector-emitter saturation voltage (VCE(sat)) and optimized for low switching losses.
This module includes critical built-in features such as an NTC thermistor for precise temperature monitoring and an isolated baseplate for simplified and safe thermal management. Its industrial-grade construction ensures high reliability and long-term stability under rigorous operating conditions, making it a cornerstone for durable power electronic designs.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Infineon Technologies
|
|
|
Series
|
-
|
|
|
Packaging
|
Tray
|
|
|
Part Status
|
Obsolete
|
|
|
IGBT Type
|
-
|
|
|
Configuration
|
Three Phase Inverter
|
|
|
Voltage - Collector Emitter Breakdown (Max)
|
1200 V
|
|
|
Current - Collector (Ic) (Max)
|
50 A
|
|
|
Power - Max
|
350 W
|
|
|
Vce(on) (Max) @ Vge, Ic
|
3V @ 15V, 50A
|
|
|
Current - Collector Cutoff (Max)
|
1 mA
|
|
|
Input Capacitance (Cies) @ Vce
|
3.3 nF @ 25 V
|
|
|
Input
|
Standard
|
|
|
NTC Thermistor
|
No
|
|
|
Operating Temperature
|
150°C (TJ)
|
|
|
Mounting Type
|
Chassis Mount
|
|
|
Package / Case
|
Module
|
|
|
Supplier Device Package
|
Module
|
|
|
Base Product Number
|
Drawing
