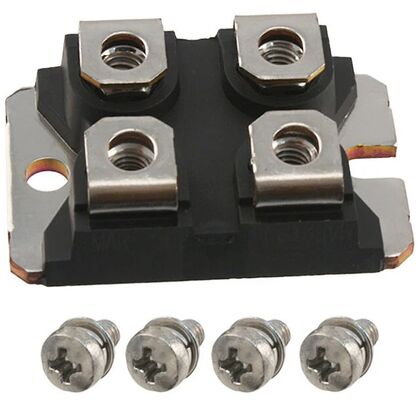

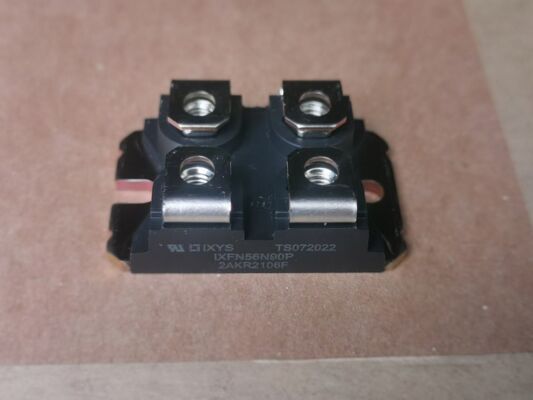

IXFN56N90P 900V 56A SiC MOSFET Low Rds(on) 65mΩ Fast Switching High Frequency Robust Body Diode High Temp Operation TO-264 Package
Features
International Standard Package
miniBLOC, with Aluminium Nitride Isolation
Low RDS(on) and QG
Avalanche Rated
Low Package Inductance
Fast Intrinsic Rectifier
Applications
Switch-Mode and Resonant-Mode Power Supplies
DC-DC Converters
Laser Drivers
AC and DC Motor Drives
Robotics and Servo Controls
Description
The IXFN56N90P is a high-voltage, high-current Silicon Carbide (SiC) MOSFET in a TO-264 package, designed to deliver superior efficiency and performance in demanding power conversion systems. It leverages the advantages of SiC technology, offering an excellent combination of a 900V breakdown voltage and a low 56A continuous current. Its very low on-state resistance (Rds(on)) of 65mΩ minimizes conduction losses, while the inherent properties of SiC enable extremely fast switching speeds with low losses, allowing for high-frequency operation. This reduces the size and cost of passive components like magnetics and capacitors. The MOSFET features a robust intrinsic body diode with excellent reverse recovery characteristics, enhancing its reliability in hard-switching applications. Its high-temperature operational capability and industry-standard package make it a robust and versatile solution for modern power designs.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
900 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
135mOhm @ 28A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
6.5V @ 3mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
375 nC @ 10 V
|
|
|
Vgs (Max)
|
±30V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
23000 pF @ 25 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
1000W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Chassis Mount
|
|
|
Supplier Device Package
|
SOT-227B
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
