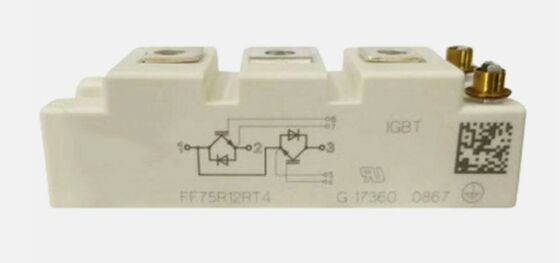

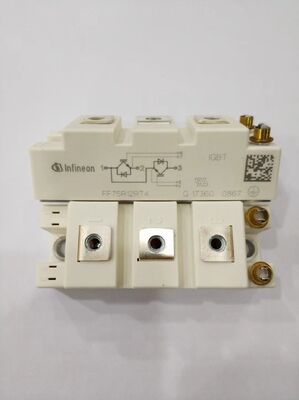

FF75R12RT4 1200V 75A IGBT Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Drives and UPS Inverters

FF75R12RT4 1200V 75A IGBT Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Drives and UPS Inverters

Features

• Standard Power Rating: 1200V / 75A

• Low Vce(sat) (Low Conduction Loss)

• Optimized Switching Losses

• Good Short-Circuit Ruggedness

• High Electrical Isolation

• Compact Module Package

• Integrated Temperature Sensor (NTC) option

• Industrial Standard Reliability

Applications

• Low to Medium Power Industrial Motor Drives: For pumps, fans, and light machinery.

• Uninterruptible Power Supplies (UPS): Small to medium three-phase and single-phase systems.

• Solar Inverters: Residential and small commercial string inverters.

• Welding Machines:

• General-Purpose AC/DC and DC/AC Power Conversion.

Description

The FF75R12RT4 is a medium-power IGBT module designed for reliable operation in common industrial and commercial power conversion systems. It features a standard voltage rating of 1200V and a current rating of 75A. The module utilizes established IGBT and diode technology to provide a balanced performance profile, with low collector-emitter saturation voltage (Vce(sat)) for efficient conduction and controlled switching characteristics. It is engineered for durability in its class, offering good short-circuit withstand capability and adequate electrical isolation, making it a cost-effective and robust solution for various inverter and drive applications.
