chúng tôi cung cấp dịch vụ giải pháp một cửa, từ các mô-đun truyền thông, ăng-ten, PCB, PCBA và tất cả các thành phần cho PCB Bom.
|
Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kiểu: | MÔ-ĐUN IGBT | Bưu kiện: | mới và nguyên bảnF00R12KT4: Mô-đun IGBT 1200V 200A, VCE(sat) thấp, độ chắc chắn ngắn mạch cao Suy ha |
|---|---|---|---|
| Tình trạng: | Mới và nguyên bản | Tình trạng không có chì: | Tuân thủ Rohs |
| Vận chuyển bằng: | DHL\UPS\Fedex\EMS\HK Post,DHL,UPS,Fedex và EMS |

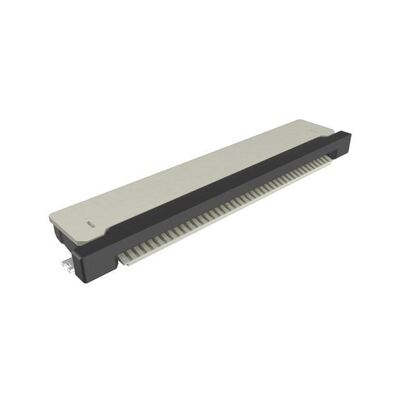

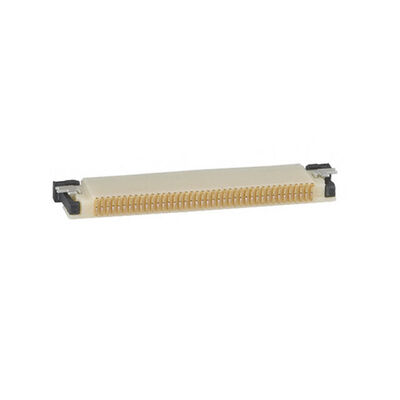

62684-401100ALF FFC/FPC Connector 40 Position 0.5mm Pitch ZIF Type Flip-Lock Actuator Surface Mount Horizontal Orientation 0.5A 50V Ideal for Consumer Electronics and Displays
Features
ZIF (Zero Insertion Force) slider mechanism
A traditional sliding actuator secures the cable
Design against solder and flux wicking
High-temperature, dimensional stable thermoplastic housing
32 to 60 positions available
Lead and halogen-free
Applications
Car Multimedia Car Navigation Dashboard Lighting
Gaming LCD & OLED Displays Base Station Switches Controllers Storage
Controllers HMI Vending Machines PLC Drives
Ultrasonic Patient Monitor MRI CT Infusion Pump Hospital Bed
Description
FFC-FPC connectors with Zero Insertion Force (ZIF), which allows for easy cable insertion (cable is pre-held by the slider) for a reliable connection. Top or bottom contact types. These connectors feature a height of 2.00mm and are offered in 32 to 60 contacts. OPU series connectors have a proven track record in automotive, data, industrial, telecommunications, consumer and medical application equipment.
INFORMATION
|
category
|
Connectors, interconnects
FFC, FPC (Flat Flexible) connectors
FFC, FPC (Flat Flexible) connector components
|
|
|
manufacturer
|
Amphenol ICC (FCI)
|
|
|
series
|
OPU
|
|
|

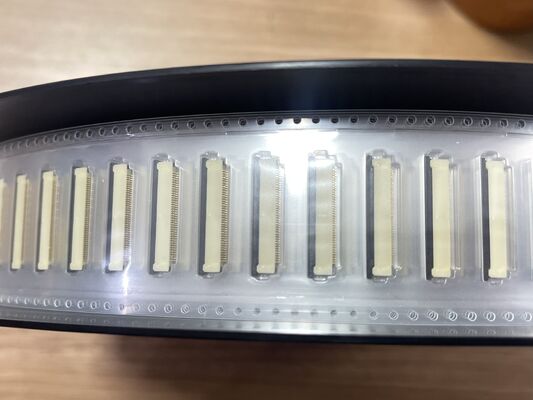

Packaging
|
Tape and Reel (TR)
Shear Belt (CT)
Digi-Reel® won the custom tape and tape
|
|
|
Part status
|
On sale
|
|
|
Flat flexible type
|
FPC
|
|
|
Mounting type
|
Surface mount, right angle
|
|
|
Connector/contact type
|
Contacts, bottom
|
|
|
Number of needles
|
40
|
|
|
Spacing
|
0.020"(0.50mm)
|
|
|
Termination
|
Welding
|
|
|
FFC, FCB thickness
|
0.30mm,0.33mm
|
|
|
Board height
|
0.079"(2.00mm)
|
|
|
Locking function
|
Slip lock
|
|
|
Cable end type
|
Straight, tapered
|
|
|
Contact material
|
Phosphor Bronze
|
|
|
Contact surface treatment
|
Gold plating
|
|
|
Shell material
|
Polyamide (PA9T), Nylon 9T, glass fiber reinforced
|
|
|
Actuator material
|
Thermoplastics - fiberglass
|
|
|
Characteristics
|
Zero Insertion Force (ZIF)
|
|
|
Rated voltage
|
50V
|
|
|
Operating temperature
|
-55°C ~ 85°C
|
|
|
Material flammability class
|
UL94 V-0
|
|
|
Rated current (amps)
|
0.5A
|
|
|
Contact surface treatment thickness
|
2.00µin(0.051µm)
|
|
|
Shell color
|
Beige
|
|
|
Actuator color
|
Black
|
|
|
Number of mating
|
20
|
Our advantage :phones, PDAand#39;s, notebook comput.ers
andnbsp;
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
