Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kiểu: | MÔ-ĐUN IGBT | Bưu kiện: | mới và nguyên bảnF00R12KT4: Mô-đun IGBT 1200V 200A, VCE(sat) thấp, độ chắc chắn ngắn mạch cao Suy ha |
|---|---|---|---|
| Tình trạng: | Mới và nguyên bản | Tình trạng không có chì: | Tuân thủ Rohs |
| Vận chuyển bằng: | DHL\UPS\Fedex\EMS\HK Post,DHL,UPS,Fedex và EMS |

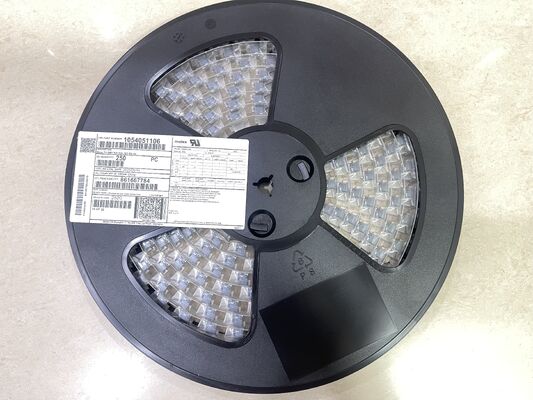

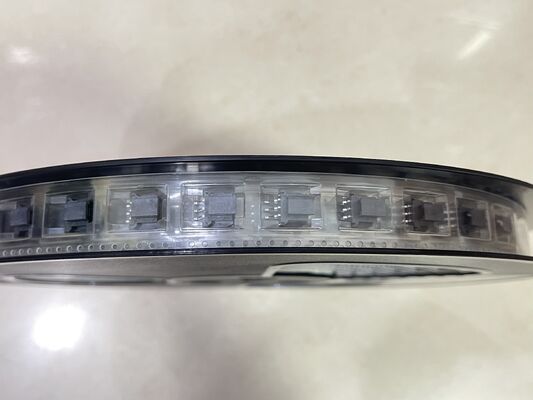

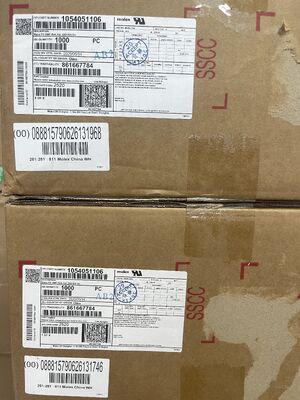

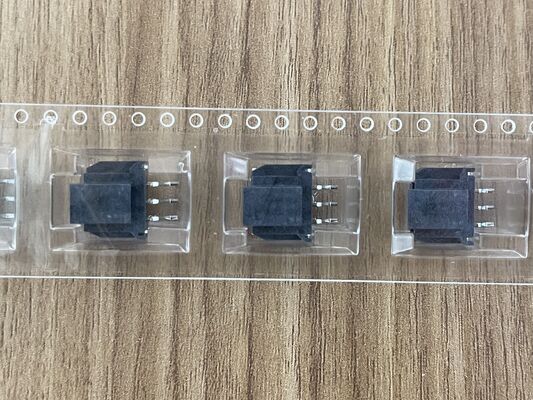

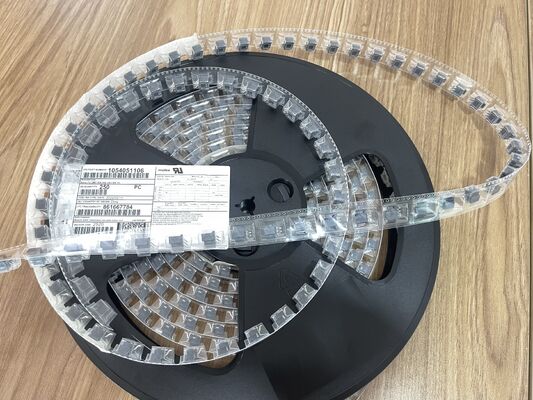

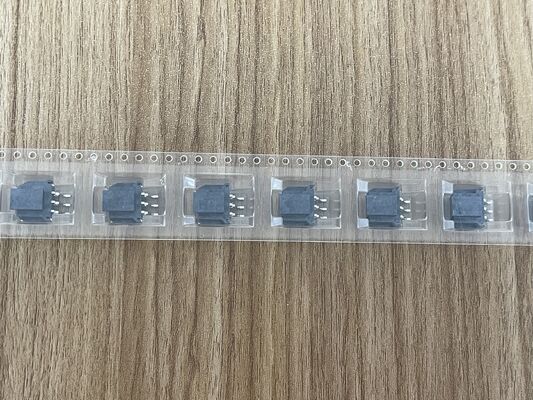

105405-1106 6 Position 1.25mm Pitch Wire-to-Board Connector Crimp Housing Receptacle Type Panel Mount Friction Lock UL 1066 V-0 for LED Lighting and Automotive
Features
6 circuits with 1.25mm (0.049") pitch
Receptacle housing for crimp terminal termination
Friction lock mating retention for secure connection
Operating voltage: 125V AC/DC
Current rating: 1A per circuit
Temperature range: -40°C to +85°C
UL 1066 V-0 rated housing material
Compact design for space-constrained applications
Applications
LED lighting systems and modules
Automotive interior electronics
Consumer electronics (TVs, monitors, portable devices)
Medical equipment and monitors
Industrial control systems
Mobile phones and handheld devices
Appliances requiring compact wire connections
Low-profile wire harness assemblies
Description
The 105405-1106 is a 1.25mm pitch, 6 position wire-to-board connector from Molex, part of the PicoBlade™ series . It is a receptacle housing designed for use with crimp terminals, featuring a friction lock mechanism for secure mating retention . The connector is compact, ideal for applications where space is limited, and is rated for both wire-to-board and wire-to-wire configurations.
INFORMATION
|
category
|
Connectors, interconnects
Rectangular connectors
Needle holder, male needle
|
|
|
manufacturer
|
Molex
|
|
|
series
|
Nano-Fit 105405
|
|
|
Packaging
|
Tape and Reel (TR)
Shear Belt (CT)
Digi-Reel® won the custom tape and tape
|
|
|
Part status
|
On sale
|
|
|
Connector type
|
Joints
|
|
|
Contact type
|
Metric pins
|
|
|
Spacing - mating
|
0.098"(2.50mm)
|
|
|
Number of needles
|
6
|
|
|
Row number
|
2
|
|
|
Row Pitch - Mating
|
0.098"(2.50mm)
|
|
|
Number of stitches loaded
|
All
|
|
|
Style
|
Board to cable/wire
|
|
|
Shield
|
With shelter - 4 walls
|
|
|
Mounting type
|
Surface mount, right angle
|
|
|
Termination
|
Welding
|
|
|
Fastening type
|
Latch support
|
|
|
Contact length - mating
|
-
|
|
|
Contact length - column
|
-
|
|
|
Overall contact length
|
-
|
|
|
Insulation height
|
0.247"(6.28mm)
|
|
|
Contact shape
|
square
|
|
|
Contact surface treatment - mating
|
tin
|
|
|
Contact Surface Finish Thickness - Mating
|
30.0µin(0.76µm)
|
|
|
Contact surface treatment - column
|
tin
|
|
|
Contact material
|
Brass
|
|
|
Insulation
|
Liquid Crystal Polymer (LCP)
|
|
|
Characteristics
|
-
|
|
|
Operating temperature
|
-
|
|
|
Intrusion protection
|
-
|
|
|
Material flammability class
|
-
|
|
|
Insulation color
|
Black
|
|
|
Rated current (amps)
|
-
|
|
|
Rated voltage
|
-
|
|
|
Engage stack height
|
-
|
|
|
Contact surface treatment thickness - column
|
30.0µin(0.76µm)
|
|
|
Application:
|
Automotive, general, industrial, medical, military, telecommunications
|
|
