Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Ghim: | 8 pin | người nắm giữ: | một hoặc hai |
|---|---|---|---|
| Kiểu: | Khác | Xếp hạng hiện tại: | 8A |

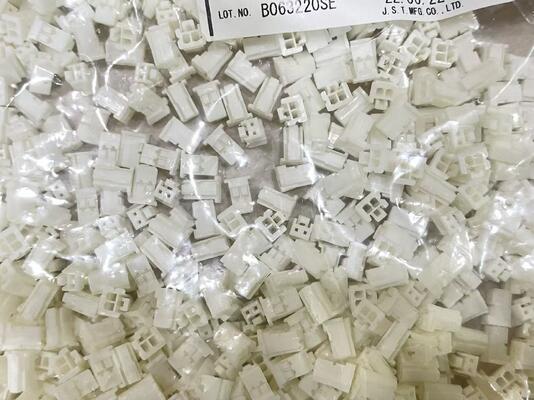

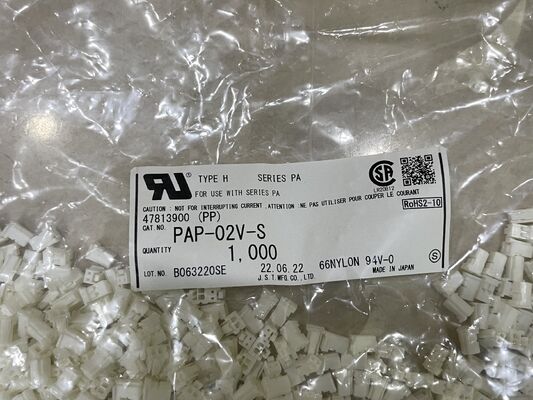

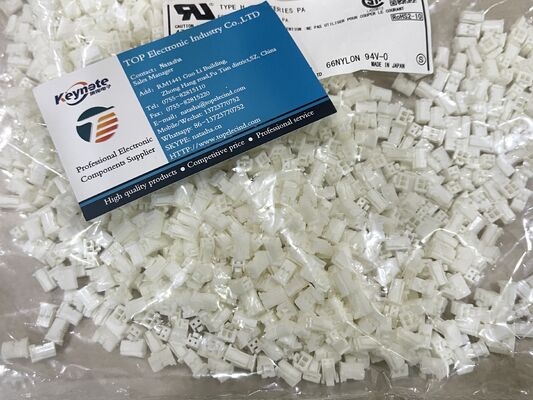

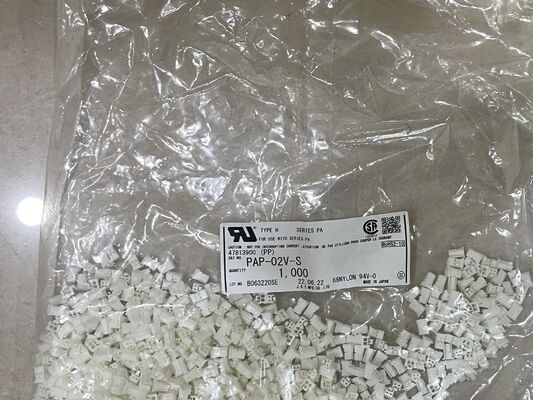

PAP-02V-S 2-pin connector housing secure locking latch compact size 250V rated flame-retardant nylon 66 easy crimp assembly reliable for wire-to-wire
Features
2-Pin Compact Housing – Small footprint with 2.0mm pitch, perfect for high-density PCB or inline connections.
Secure Locking Latch – Positive audible click ensures vibration-resistant mating, prevents accidental unplugging.
Flame-Retardant Material – UL94 V-0 rated nylon 66 for safety in high-temperature or fault-prone environments.
250V AC/DC Voltage Rating – Suitable for low to medium voltage signal and control circuits.
Wide Operating Temperature – Rated from -25°C to +85°C, covering most indoor and industrial use cases.
Easy Crimp Assembly – Accepts standard JST crimp contacts (e.g., SPALH-001T-P0.5) for automated or hand tooling.
Wire-to-Wire & Wire-to-Board Compatible – Can be used with matching PAP header pins on PCBs or another PAP housing for inline splicing.
Applications
Consumer Electronics – Internal wiring of LED lighting, fans, small home appliances.
Industrial Control Panels – Signal connections for sensors, switches, and low-power relays.
Automotive Aftermarket – 12V/24V harness repairs, auxiliary lighting, or interior electronics.
Battery Packs & Power Systems – Balance leads for Li-ion packs, UPS internal interconnects.
Medical Devices – Diagnostic equipment, patient monitors (non-implantable, low-risk circuits).
HVAC & White Goods – Thermostat wiring, humidifier control boards, washing machine sensors.
Prototyping & DIY Projects – Reliable, detachable connections for Arduino, 3D printers, or custom cable assemblies.
Description
The PAP-02V-S is a 2-position crimp-style connector housing from JST's PAP series, designed for secure wire-to-wire connections in compact electronic devices. Made of UL94 V-0 flame-retardant nylon 66, it features a positive locking mechanism to prevent accidental disconnection. This miniature connector housing accepts SPALH-001T-P0.5 or similar crimp contacts and supports both discrete wire and IDC termination options. Its small pitch (2.0mm) makes it ideal for space-constrained applications requiring reliable signal or low-power distribution.
INFORMATION
|
category
Connectors, interconnects
Rectangular connectors
Rectangular connector housing
|
Row number
1
|
|
manufacturer
JST Sales America Inc.
|
Mounting type
Free hanging
|
|
series
PA
|
The contact is end-to-end
Crimping
|
|
Packaging
Bulk
|
Fastening type
Pinlock
|
|
Part status
On sale
|
Color
Natural
|
|
Connector type
Socket
|
Insulation
Polyamide (PA66), Nylon 6/6
|
|
Contact type
Female socket
|
Operating temperature
-25°C ~ 85°C
|
|
Number of needles
2
|
Note:
Contacts sold separately
|
|
Spacing
0.079"(2.00mm)
|
Base product number
PAP-02V
|
Drawing
